Ready-to-install, with the SmartLift™ application pre-loaded.

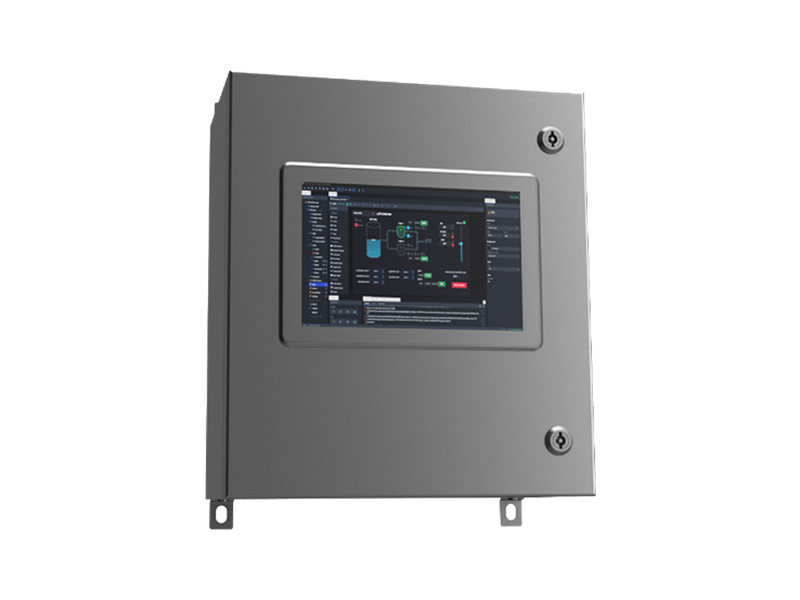

The MAK Lift Station kit ships with the SmartLift™ application pre-installed and configured for a duplex pump station with radar level, two 100 A split-core current transformers, and four float inputs. Lead/lag and pump-group rotation logic is included. Each pump can be controlled locally and remotely with individual Auto / Hand / Off modes, and the kit supports contactor or VFD-driven pumps.
The standard kit supports up to two level inputs — the included PulsarQ™ radar plus any combination of floats, rod sensors, or pressure-based sensors. Pump amperage, overload, and power loss are monitored out of the box; phase monitors, generator health, and flow monitoring can be added as needed.
| Part Number | Description |
|---|---|
| MAK-AC-LS-U-2-B-006-P-1614-0D0 | 144 W UPS, polycarb 16×14″ enclosure, 2×100 A split-core CT, dual pump, radar |
| MAK-AC-LS-U-2-B-006-S-1513-0D0 | 144 W UPS, stainless 15×13″ enclosure, 2×100 A split-core CT, dual pump, radar |
| MAK-AC-LS-U-2-B-006-C-1513-0D0 | 144 W UPS, carbon steel 15×13″ enclosure, 2×100 A split-core CT, dual pump, radar |
The MAK Lift Station kit ships with the SmartLift application pre-installed. Every release is validated on real hardware before it ships.
Runs on SmartController
Controls two pumps that empty a wet well. The lead pump starts when the well rises to the start level and the lag pump joins it if the level keeps climbing; both stop once the well is drawn down. Pumps can rotate the lead role every cycle so they wear evenly. Well level can come from a radar, an analog rod sensor, or four floats, and the station keeps running on a backup source if the primary sensor fails.
All D6 Labs' products are designed and built by our team of engineers and technicians in the heartland of the USA. We do not outsource any part of our business so when you need support, you are talking directly to the people who design and build our product. We maintain stock on all parts so a replacement is just a phone call away.
