Ready-to-install, secure process monitoring — controller, I/O, enclosure, and power in one part number.

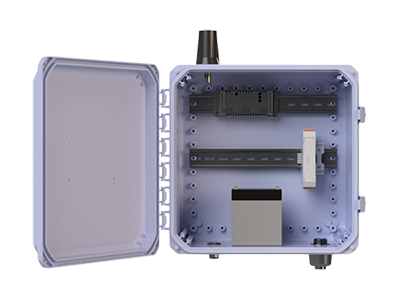

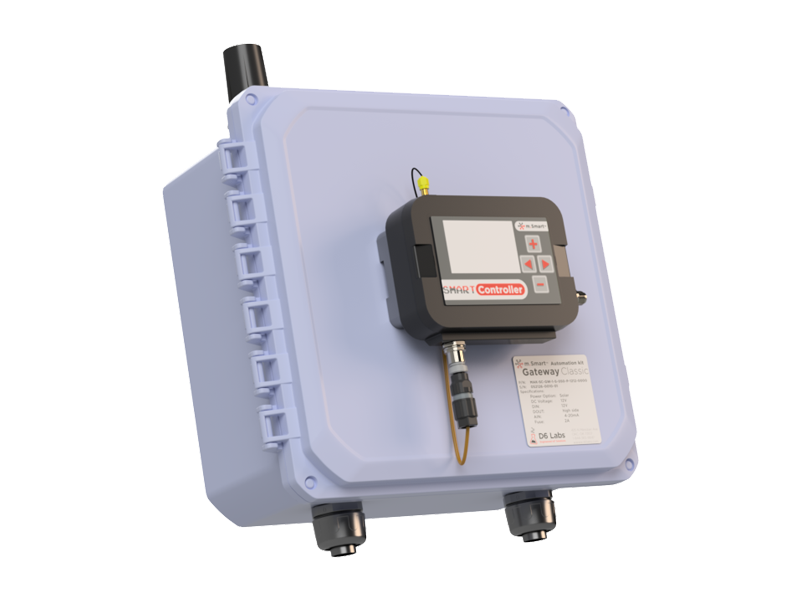

The MAK Gateway is a complete automation kit for process-monitoring applications — water towers, master meters, leak detection, generators, and similar sites. The kit includes a SmartController, one Universal I/O module, a NEMA 4-rated enclosure, and a choice of solar or SmartUPS power. Monitor tower level, pressure, flow rate, and other parameters locally on the sunlight-readable LCD or remotely through Whisker.io®.
All tags — scaling, Modbus parameters, engineering units — are configured in the cloud. The MAK automatically pulls down the latest configuration as it changes, so commissioning and updates happen without a field laptop.
| Part Number | Description |
|---|---|

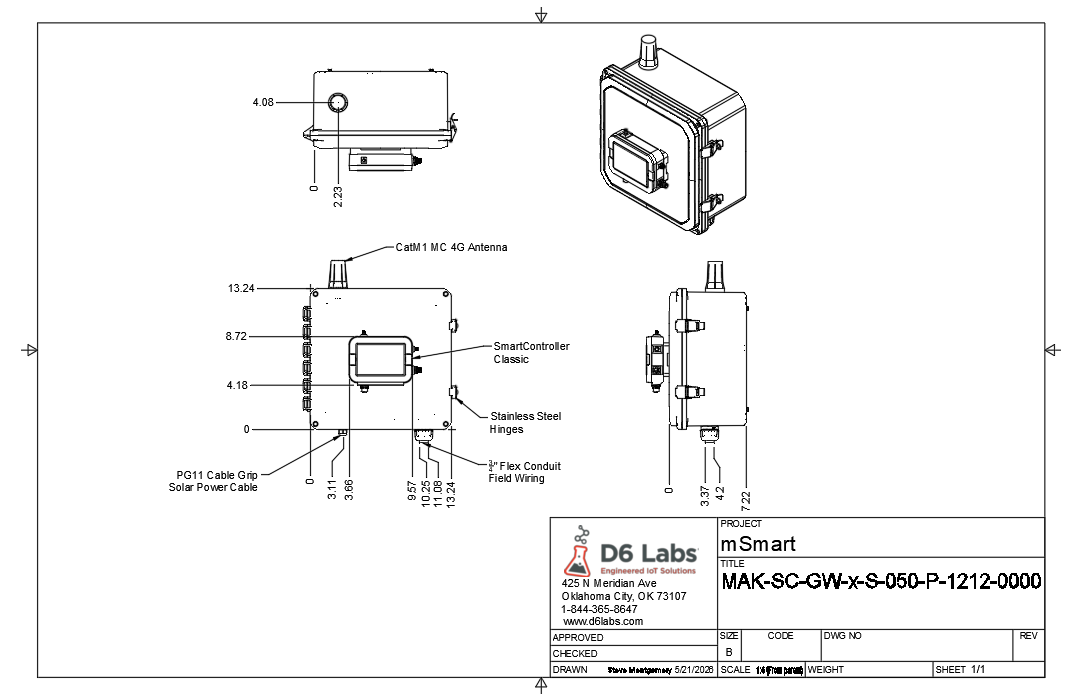

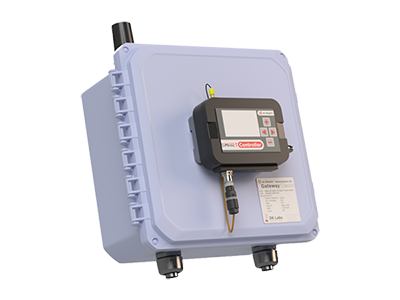

| MAK-SC-GW-U-1-S-050-P-1212-000 | 50 W solar, 1 Universal I/O, polycarb 12×12″ enclosure |
| MAK-SC-GW-U-1-S-050-S-1111-000 | 50 W solar, 1 Universal I/O, stainless 11×11″ enclosure |

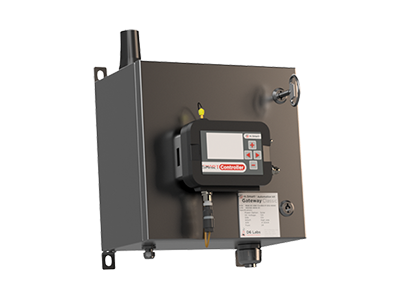

| MAK-SC-GW-U-1-S-050-C-1111-000 | 50 W solar, 1 Universal I/O, carbon steel 11×11″ enclosure |
| MAK-SC-GW-U-1-S-100-P-1614-000 | 100 W solar, 1 Universal I/O, polycarb 16×14″ enclosure |
| MAK-SC-GW-U-1-S-100-S-1513-000 | 100 W solar, 1 Universal I/O, stainless 15×13″ enclosure |
| MAK-SC-GW-U-1-S-100-C-1513-000 | 100 W solar, 1 Universal I/O, carbon steel 15×13″ enclosure |

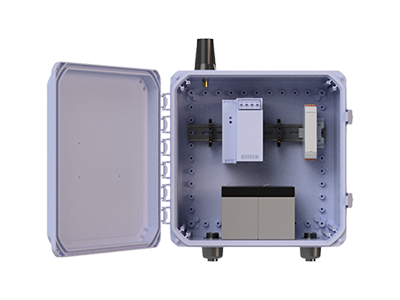

| MAK-SC-GW-U-1-B-006-P-1614-000 | 144 W SmartUPS, 1 Universal I/O, polycarb 16×14″ enclosure |
| MAK-SC-GW-U-1-B-006-S-1513-000 | 144 W SmartUPS, 1 Universal I/O, stainless 15×13″ enclosure |
| MAK-SC-GW-U-1-B-006-C-1513-000 | 144 W SmartUPS, 1 Universal I/O, carbon steel 15×13″ enclosure |
| MAK-SC-GW-U-1-B-015-P-1614-000 | 360 W SmartUPS, 1 Universal I/O, polycarb 16×14″ enclosure |
| MAK-SC-GW-U-1-B-015-S-1513-000 | 360 W SmartUPS, 1 Universal I/O, stainless 15×13″ enclosure |
| MAK-SC-GW-U-1-B-015-C-1513-000 | 360 W SmartUPS, 1 Universal I/O, carbon steel 15×13″ enclosure |
The MAK Gateway ships with one of the following monitoring applications pre-installed. Each is documented and versioned independently.
Runs on SmartController
A monitor for water towers. It measures tower level from a 4-20 mA transmitter and reports it to the cloud once a minute, along with the solar input and battery voltages of its own power system. It has no outputs and no control logic - nothing at the site can be commanded from it. Solar powered, so it needs no utility power at the tower.
A hardware validation report for this application has not been published yet.
Runs on SmartController
A monitor for master meters. It counts the meter's pulse output and reports both a flow rate and a running total to the cloud once a minute, along with its own solar and battery voltages. It has no outputs and no control logic. Solar powered, so it can sit at the meter vault without utility power.
A hardware validation report for this application has not been published yet.
Runs on SmartController
A monitor for distribution-system pressure. It reads a 0-200 PSI transmitter plumbed into the line and reports to the cloud, where a sustained pressure drop - the signature of a break or a leak - raises an alarm. It has no outputs and no control logic. Solar powered, so it can be placed anywhere on the system.
A hardware validation report for this application has not been published yet.
All D6 Labs' products are designed and built by our team of engineers and technicians in the heartland of the USA. We do not outsource any part of our business so when you need support, you are talking directly to the people who design and build our product. We maintain stock on all parts so a replacement is just a phone call away.
